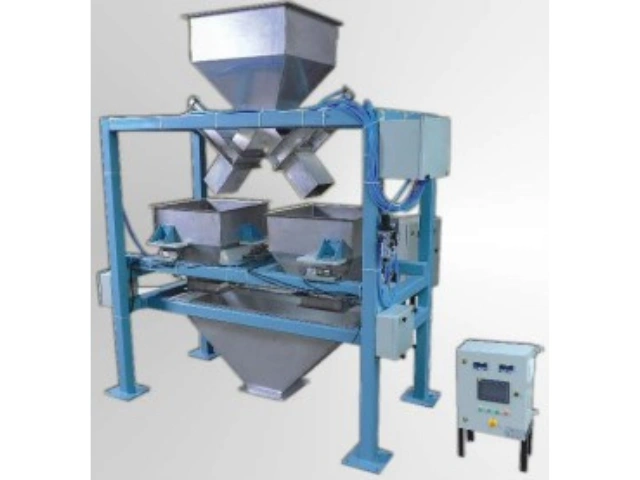

Flow Scale/ Continuous Inline Weigher

Working Process of our flow scale and inline weigher-

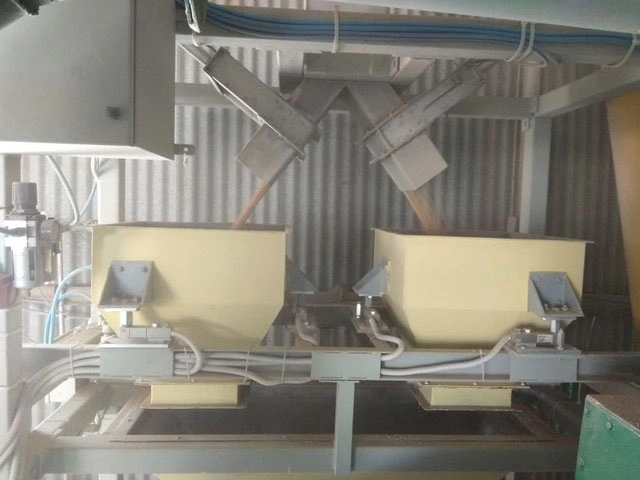

- For continuous online weighing of grain and other free flowing material. The system consists of one or two weigh hoppers which are continuously fed to a set level.
- Then feed is stopped for few seconds or diverted to the other hopper. The material is weighed accurately and discharged before feed is restarted and process repeated. The weight data is sent to a totalizer and displayed on the HMI screen.
- The system is designed to enable continuous flow of material in and out of the system so that the processing before and after the continuous bulk weigher is not disturbed.
- For accurate weighing and control of input and output in every shift
- Continous / Inline system to integrate seamlessely with the existing production line
- Load Cell based technology for accuracy with +0.2%
- PLC based system with Touch Screen controls. Easy operation, steady and reliable performance
- Rugged and aesthetic construction with SS contact parts
- Optional fetures - Web based data recording and reports
